BSM170
Digital Free-Standing Stadiometer
The BSM 170 Stadiometer is the height of convenience! A manually operated digital stadiometer that integrates with InBody's professional body composition analyzers and it delivers quick, accurate height metrics.
User-Friendly Measuring Part
Superior digital display equipped with a 2.5 inch LCD helps you to check the measurement data at a glance and turns off automatically after a certain time for energy saving. All-in-one measuring part integrated with head bar and control panel guarantees you an easy interface to use.
Free-Standing
By simply standing on our strong and durable footplate, it helps you to posture correctly and comfortably to receive quick and accurate results. With a sturdy aluminum rod, it can also support your weight, preventing you from falling during use.
Battery Operation
It operates on batteries without any tangled wires blocking its way, making it possible to move around places to places anywhere you want. The BSM170 is free from any cables, hence no spatial constraints.
Bluetooth Connection
Simply connect the BSM170 and the InBody, the professional body composition analyzer, via Bluetooth without any cable attached.

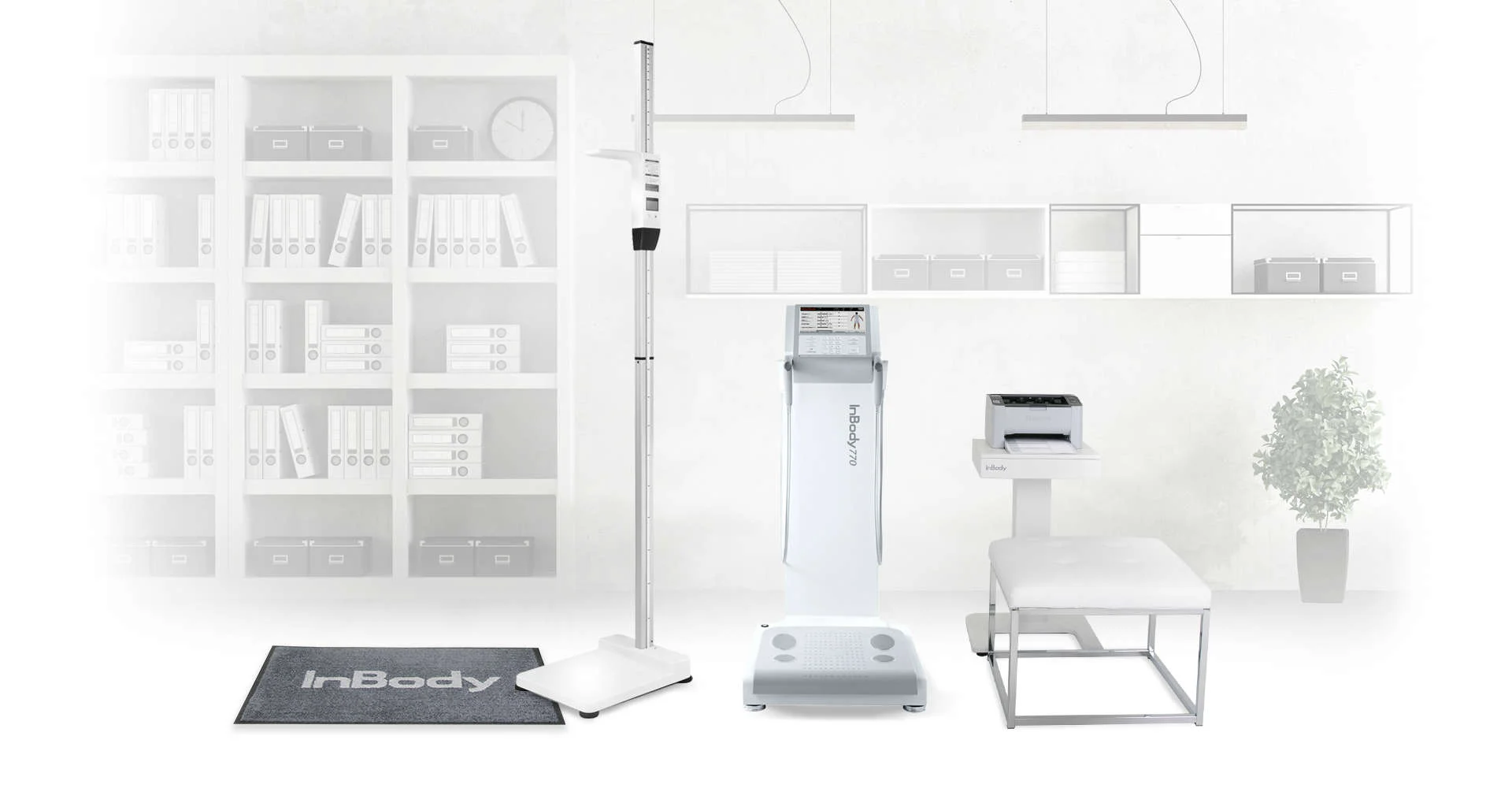

InBody Ecosystem Integration
Part of the InBody Ecosystem of products, the BSM170 can be paired via Bluetooth with InBody's professional body composition analyzers, for seamless, error-free body composition testing.
The BSM170 is compatible with the InBody270, InBody380, InBody580, InBody770, InBody970, and BWA2.0.
Specifications
Key Specifications
Measurement Item: Height, Weight, BMI
Height Range: 90 ~ 200cm (2ft. 11.4in. ~ 6ft. 6.7in.)
Feature Specifications
Display Type: Customized LCD
Zero Setting: Automatic zero setting during warming up
Measurement Mode: Weight and Height / Weight only / Height only
Error Range: ±1mm
Weight Range: 2 ~ 250kg (4.5 ~ 553.3 lbs)
Height Measurement: A (Measure height after weight measurement) NA (Press ENTER button after measuring weight to measure height.)
Weight Offset: Unit: 0.1kg, from 0.0kg to 5.0kg. Unit: 0.1lbs, from 0.0lbs to 9.9lbs
Unit: Available to choose 'kg/cm' and 'lbs/in.'
Portability: Foldable height measuring part Attaching wheels for carrying easily
Optional Device: Remote control device (2m Cable), Thermal Printer
Other Specifications
Adapter: Power Input: AC 100-240V, 50/60Hz, 1.2A. Power Output: DC 12V, 3.33A
External Interface: RS-232C 1EA
Printer: Thermal Printer (Optional, the printers recommended by InBody)
Details
Dimension: When Touch Bar is down: 380(W) x 510(L) x 1350(H) mm. When Touch Bar is up: 380(W) x 510(L) x 2126(H) mm
Machine Weight: 15.5kg (34lbs)
Environment
Measurement Duration: Weight: 7 sec, Height: 5 sec. (standby time 2 sec.)
Operation Environment: 10 ~ 40°C, 30 ~ 75%RH, 70 ~ 106kPa
Storage Environment: -20 ~ 70°C, 10 ~ 95%RH, 50 ~ 106kPa (No condensation)
* Specifications are subject to changed without prior notice.
